SOLO™ Family of Products
Precision, Clarity, and Efficiency

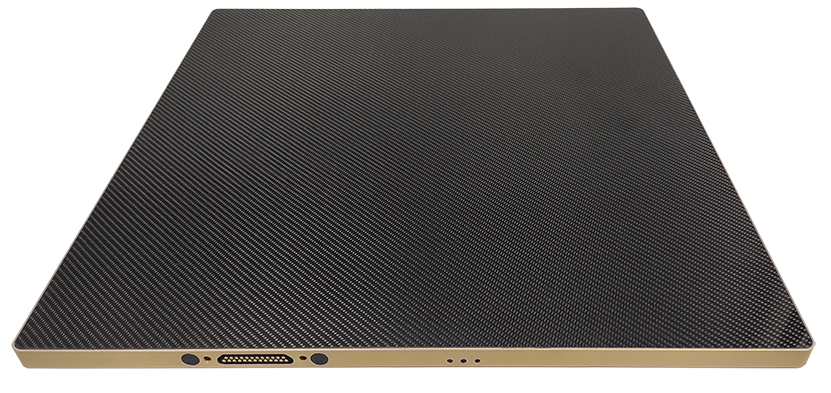

SOLO™ DR 4343F
DIGITAL X-RAY DETECTOR
17x17" (43x43cm) Digital Flat Panel X-Ray Detector with 140 micron pixel size.The SOLO™ DR 4343R can be used to retrofit existing analog imaging systems and can support a wide range of diagnostic studies.
Lightweight design, effortless integration into analog X-ray system due to its slim cassette format, and bundled with an acquisition workstation make SOLO™ DR 4343F the solution of choice for customers seeking to retrofit existing analog units.

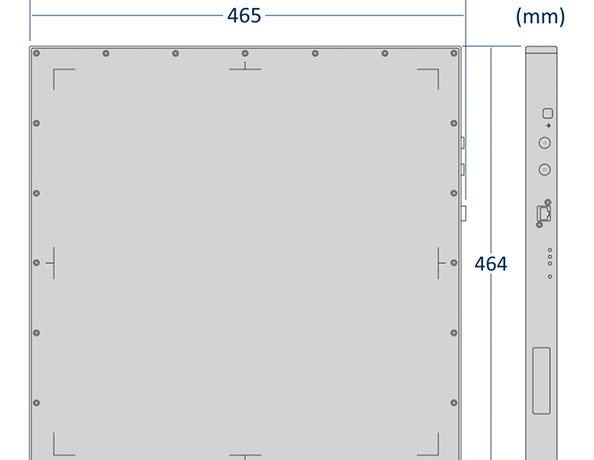

464 x 462 x 33 mm
LIGHTWEIGHT
Key Features and Advantages of SOLO™ DR 4343F
43x43 (17" x 17") a-Si TFT digital dynamic detector
ISO 4090 compatible
Built-in Automatic Exposure Control (AEC) algorithm provides exposure dose control without a separate AEC sensor, reducing cost and increasing reliability
Built-in Automatic Brightness Control (ABC) system
Real-time data transfer over a standard Ethernet CAT 5e cable by means of 2,5 Gbit Ethernet interface
Dustproof and waterproof design (IP67)

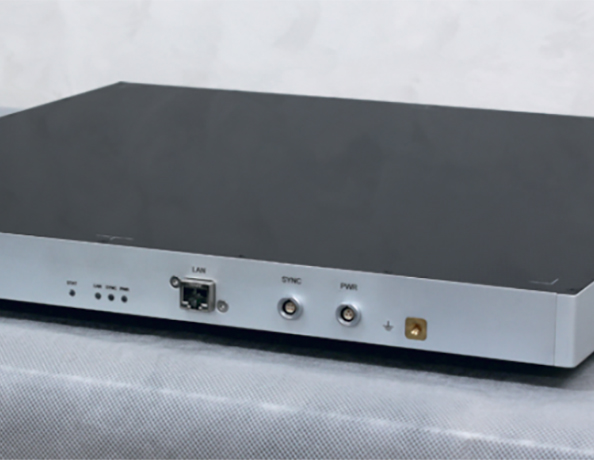

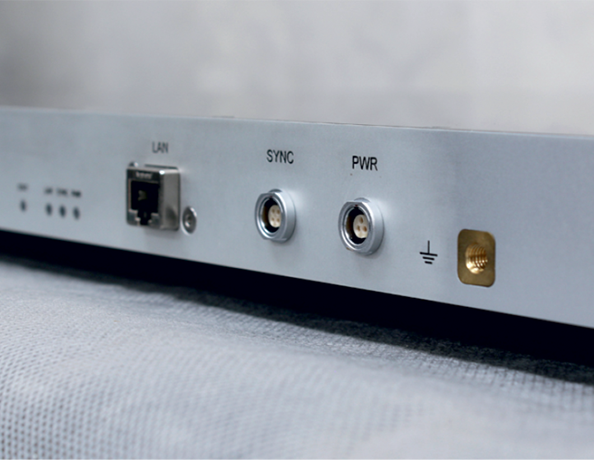

Quickly and easily connect the detector to your acquisition workstation with a magnetic connector
Built-in memory module for storing detector calibration data and settings as well as temporary storage image data
Specifications
Detector Technology: a-Si TFT
Scintillator: Direct Deposited CsI or Gadox
Number of Pixels: 3072 x 3072
Pixel Pitch: 140 µm
A/D Conversion: 16 bits
Interface: GigE Vision
Ingress Protection: IP 21
Storage Temperature: 0°C to + 55°C
Operating Temperature: +10°C to + 35°C
Power Supply: 24 VDC, 1 A (max)
Dimensions: 464 x 462 x 33 mm (Dimensions are for reference only)
Weight: 7 kg

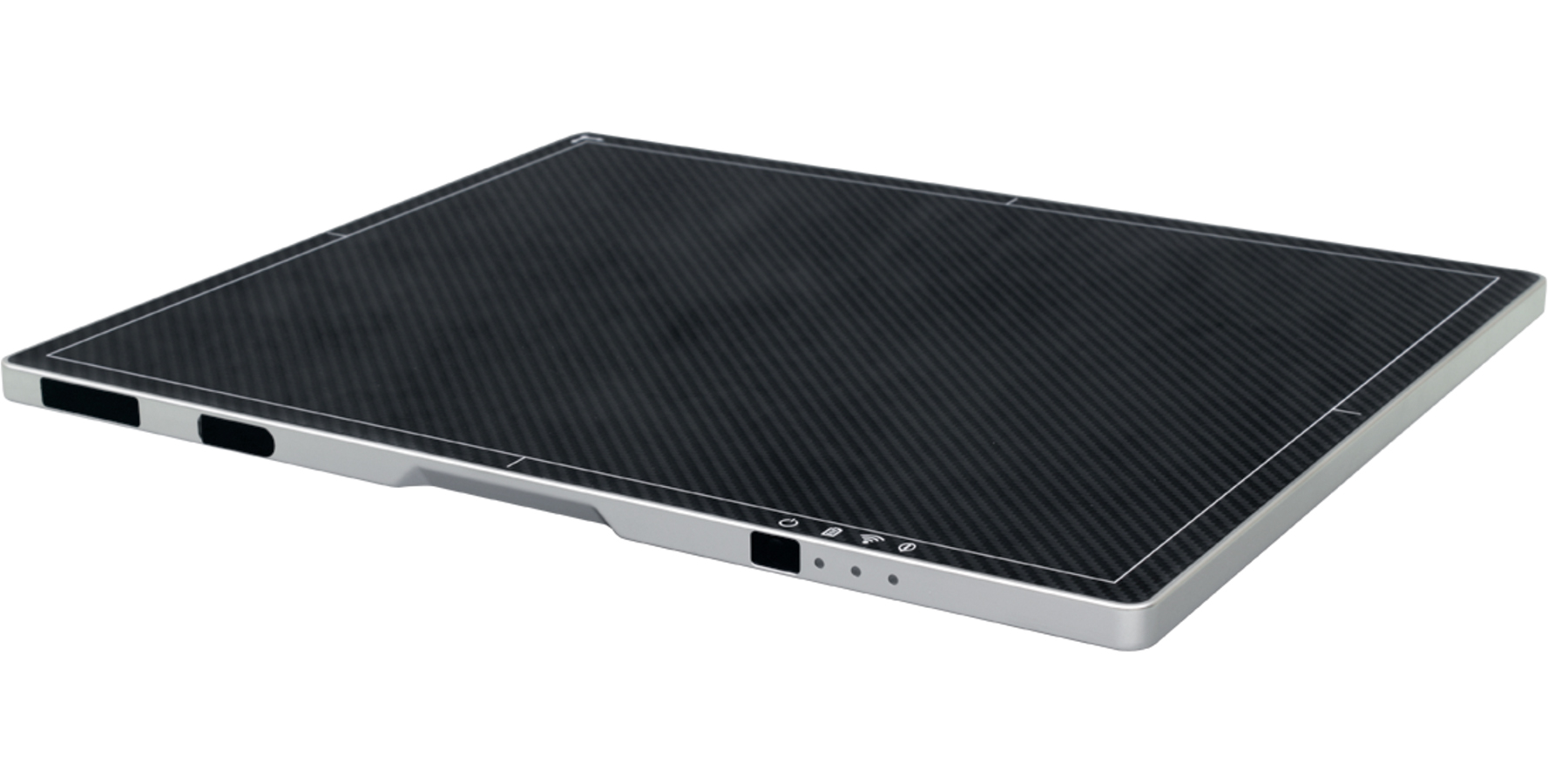

SOLO™ DR 3543W
DIGITAL WIRELESS X-RAY DETECTOR
14x17" (35x43cm) Digital X-Ray Detector with a 140µm pixel size. When combined with our simple Acquisition Workstation, receiving and processing X-Ray images is fast and easy!The SOLO™ DR 3543W provides a complete approach to direct digital radiography. With this cassette size detector, an existing analog system is instantly transformed into a digital device. The Automatic Exposure Detection (AED) function allows for the detector to be used with various X-ray systems without the need for complex integration.
With its light weight design, the detector is easily transportable and may be used in combination with a portable X-ray source for mobile imaging capability. The SOLO™ DR 3543W is a modern and reliable solution for obtaining excellent quality digital images.
Wireless technology provides flexibility and convenience during examinations and is simple to use. The benefits include a more efficient imaging cyble, increased patient throughput and enhance patient comfort.

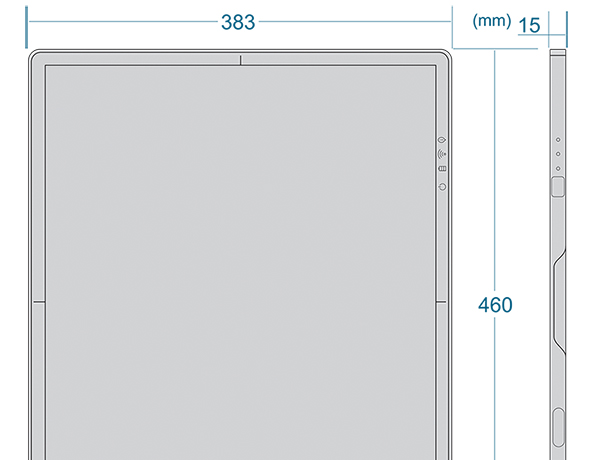

460 x 383 x 15 mm
LIGHTWEIGHT
Key Features and Advantages of SOLO™ DR 3543W
Direct deposition CsI Scintillator
State-of-the-art a-Si TFT Array
High sensitivity
Low Noise
Superior DQE and MTF

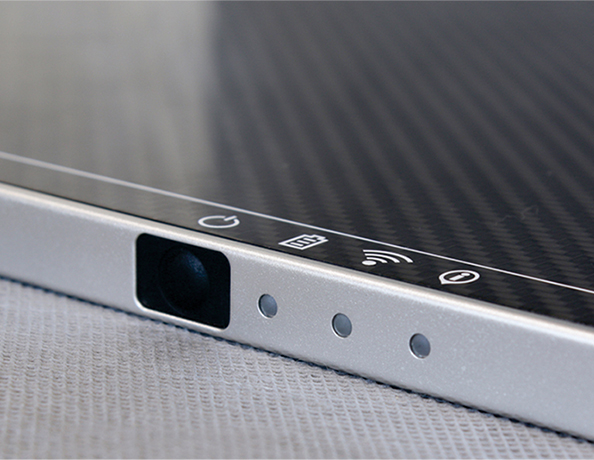

High Speed Wireless Interface

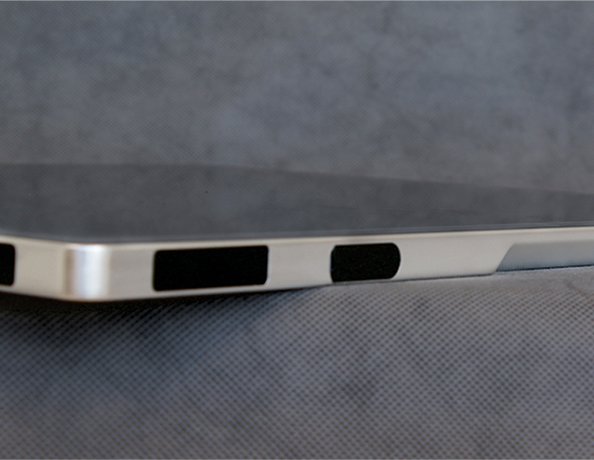

Ergonomic design including indentation on the back for more convenient holding and carrying
Proprietary image enhancement through onboard software and hardware features
Fast processing for dual energy examinations
Available with an optional Acquisition Workstation or Standalone SDK
Specifications
Detector Technology: a-Si TFT
Scintillator: Direct Deposited CsI or Gadox
Number of Pixels: 2500 x 3052
Pixel Pitch: 140 μm
A/D Conversion: 16 bits
Interface: Wireless
Ingress Protection: IP 54
Storage Temperature: 0°C to + 55°C
Operating Temperature: +10°C to + 35°C
Power Supply: Battery Powered
Dimensions: 460 x 383 x 15 mm (Dimensions are for reference only)
Weight: 3.5 kg
